Swift BAT Position/Attitude History Data (gdt.missions.swift.bat.poshist)

Probably the most critical auxiliary file bat produces is the Spacecraft Attitude/Orbit (SAO) history file. The SAO contains the spacecraft location in orbit and pointing information, sampled on a 1 second timescale. You may want to know if a source is visible at a particular time (i.e. not behind the Earth). You may want to know if there are specific contributions to the background during a time interval, such as sun visibility or high geomagnetic latitude in orbit. You may want to rotate something from the equatorial frame to the swift inertial frame, or vice versa. Or you may want to make a pretty gif of the detector pointings over time.

To read a SAO file, we open it with the |BatSao| class:

>>> from gdt.core import data_path
>>> from gdt.missions.swift.bat.poshist import BatSao
>>> filepath = data_path / 'swift-bat' / 'sw00974827000sao.fits.gz'
>>> sao = BatSao.open(filepath)
>>> sao
<BatSao(filename="sw00974827000sao.fits") at 0x7fd63d9ebd90>

The sao object contains the spacecraft frame, which is the spacecraft position and orientation as a function of time, and the spacecraft states, which are the series of state flags as a function of time.

To see what state flags are available, we can retrieve the spacecraft states in the following way:

>>> states = sao.get_spacecraft_states()
>>> states
TimeSeries length=2162
time             sun        saa
Time                   bool bool
---------------- ---- -----
612353536.6006      False   False
612353537.6006      False   False
612353538.6006      False   False
612353539.6006      False   False
612353540.6006      False   False
612353541.6006      False   False
612353542.6006      False   False
... ...     ...
612355691.6006      True    False
612355692.6006      True    False
612355693.6006      True    False
612355694.6006      True    False
612355695.6006      True    False
612355696.6006      True    False
612355697.6006      True    False

The state flags are stored in an Astropy TimeSeries object, and for each sampled time, there is a flag denoting if the sun is visible, if the spacecraft is in SAA, and if the data are in a good time interval (which in this case is just the opposite of the SAA flag).

We can, for example create a Good Time Intervals Gti object from the time and saa columns:

>>> from gdt.core.data_primitives import Gti
>>> gti = Gti.from_boolean_mask(states['time'].value, ~states['saa'].value)
>>> gti
<Gti: 1 intervals; range (612353536.6006, 612355697.6006)>

Regarding the spacecraft frame, we can retrieve it as a SpacecraftFrame object:

>>> frame = sao.get_spacecraft_frame()
<SpacecraftFrame: 2162 frames;
obstime=[612353536.6006, ...]
obsgeoloc=[(-6165602., -2728582.2, 1604040.5) m, ...]
obsgeovel=[(3400.097, -6478.7993, 2006.0916) m / s, ...]
quaternion=[(x, y, z, w) [-0.35197902, -0.34436679, -0.75078022,  0.44028553], ...]>

You will notice that this frame has a location in Earth Inertial Coordinates (obsgeoloc), the velocity of the spacecraft with reference to the Earth Inertial Coordinate frame (obsgeovel), and the spacecraft orientation quaternion, each for a given time stamp (obstime).

Let’s say we are interested in data around a specific time, for example MET=612355691.6006. We can generate an interpolated frame at the requested time, as long as it exists within the boundaries of the file.

>>> from gdt.missions.swift.time import *
>>> time = Time(612355691.6006, format='swift')
>>> one_frame = frame.at(time)
>>> one_frame
<SpacecraftFrame: 1 frames;
 obstime=[612355691.6006]
 obsgeoloc=[(6557780., -2207894.75, 134512.375) m]
 obsgeovel=[(2323.70922852, 6723.68066406, -2668.9206543) m / s]
 quaternion=[(x, y, z, w) [-0.2434614 ,  0.39559507, -0.55300576,  0.69167602]]>

We can retrieve where swift was in orbit at that time:

>>> one_frame.earth_location.lat, one_frame.earth_location.lon
(<Latitude 1.22700959 deg>, <Longitude -66.81447614 deg>)
>>> one_frame.earth_location.height
<Quantity 542665.41017423 m>

We might be interested to know where the Earth is (and its apparent radius) relative to swift:

>>> one_frame.geocenter.ra, one_frame.geocenter.dec
(<Longitude 161.39248212 deg>, <Latitude -1.11366964 deg>)

>>> one_frame.earth_angular_radius
<Quantity 67.15947244 deg>

We could also be interested in a particular known source, and it would be helpful to know if it is even visible to swift at the time of interest:

>>> from astropy.coordinates import SkyCoord
>>> coord = SkyCoord(324.3, -20.8, frame='icrs', unit='deg')
>>> one_frame.location_visible(coord)
True

Well, that’s good to know.

Sometimes it’s useful to transform a source location of interest in equatorial coordinates to the swift inertial frame. You can do that by the following:

>>> coord_sc_frame = coord.transform_to(one_frame)
>>> coord_sc_frame.az, coord_sc_frame.el
(<Longitude [39.65707981] deg>, <Latitude [28.22627833] deg>)

Note that the frame transformation is in azimuth and elevation. It’s important to note that the Swift inertial frame is defined by azimuth (0-360 deg) and elevation (-90-90 deg) or zenith (0-180 deg).

You can also go from Swift (azimuth, elevation) coordinates to equatorial coordinates:

>>> sc_coord = SkyCoord(0.0, 90.0, frame=one_frame, unit='deg')
>>> sc_coord.icrs
<SkyCoord (ICRS): (ra, dec) in deg
    [(352.96654199, 34.64305751)]>

Note that any and all of these operations can be performed on an array of frames, even on the entire series of frames contained within the SAO file. For more details on working with the SpacecraftFrame, see Spacecraft Attitude, Position, and Coordinates.

Reference/API

gdt.missions.swift.bat.poshist Module

Classes

BatSao()

Class for reading a BAT SAO Position history file.

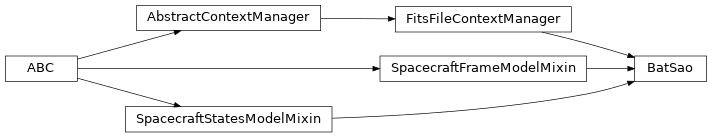

Class Inheritance Diagram
